Products

A DOOR FOR EVERY APERTURE

Aluminium Doors

Our Cortizo range of aluminium door systems have been designed and developed with fabricators, installers and homeowners in mind.

With a wide range of finishes available, our aluminium range ensures longevity combined with impressive thermal and acoustic insulation and resistance to atmospheric agents.

Bi-Fold Plus

Bringing the outside inside

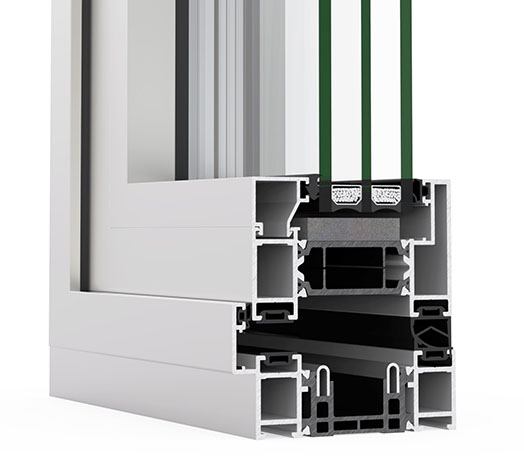

dissected image of product structure
dissected image of product structure
dissected image of product structure
dissected image of product structure

With an 80mm deep frame, this evolution of the Bi-fold series offers an excellent thermal and acoustic performance, thanks to its 45mm thermal break and a glazing capacity up to 48mm.

  • Up to 14 sashes outwards and inwards opening
  • Possibility of either odd or even number of sashes
  • Double bearing system with a gimbal stabiliser
  • PAS 24
Download Product Brochure (PDF)
Download Bottom Details (PDF)
Download Spec & Detail Guide (PDF)

Glazing
  • Minimum glazing thickness: 25mm
  • Maximum glazing thickness: 48mm
Opening Possibilities
  • Inward: 1 to 14 sashes
  • Outward: 1 to 14 sashes (90° corner sash without mullion)
Sightlines
  • Jamb: 89mm
  • Meeting Stile: 110mm
  • Frame: 73mm
  • Sash: 73mm
Profile Thickness
  • Door: 1.8mm
Polyamide Width
  • Frame: 45mm
  • Sash: 45mm
Polyamide Strip Length
  • Frame: 20mm
  • Sash: 30mm
Maximum Dimensions/sash
  • Width (L): 1200mm
  • Height (H): 3000mm
Maximum Sash Weight
  • 120kg
Finishes
  • Possibility of dual colour systems, colour powder coating (RAL, mottled, rough), wood effect powder coating, anti-bacterial powder coating, anodised.
Energy Efficiency

Thermal Transmission Coefficient (double glazing): from 1.2 (W/m2K)

Thermal Transmission Coefficient (triple glazing): from 0.8 (W/m2K)

Please consult typology, dimensions and glazing

Categories achieved at test centre
  • Air Permeability (EN 12207): Class 4
  • Water Tightness (EN 12210): Class E750
  • Wind Resistance (EN 12210): Class C3
  • PAS24 Security Test: PASSED

* See product spec sheet for test configuration

4700 Sliding Door

Bringing the outside inside
dissected image of product structure
dissected image of product structure
Maximising light indoors

The 4700 Sliding Door System allows for a straight aesthetic with a central minimalistic interlock of just 47 mm of visible section.

  • System for sliding windows and doors with straight aesthetic
  • Possibility for Lift & Slide configurations
  • Sashes of up to 280kg (slide) / 300kg (lift & Slide) allows maximum dimensions of 2500mm (W) x 3000mm (H)
  • Central minimalist sash encounter of only 47 mm of visible section
  • Stainless steel rails to allow for ultra smooth sliding
  • PAS 24
Download Product Brochure (PDF)
Download Bottom Details (PDF)
Download Spec & Detail Guide (PDF)

Glazing
  • Minimum glazing thickness: 26mm
  • Maximum glazing thickness: 36mm

Opening Possibilities
  • Sliding of 2, 3, 4 & 6 sashes
  • Possibility of 1 rail (1 sash + 1 fixed)
  • Possibility of 3 rails
  • Possibility of galandage 1, 2 & 4 sashes
Sections
  • Frame: Double Track & Triple Track
  • Sash: 50mm
Profile Thickness
  • Balcony: 1.5mm
Polyamide Strip Length
  • 20mm & 25mm
Maximum Dimensions/sash
  • Width (L): 2500mm
  • Height (H): 3000mm
Maximum Sash Weight
  • Slide: 280kg
  • Lift & Slide: 300kg
Finishes
  • Possibility of dual colour options, colour powder coating (RAL, mottled, rough), wood effect powder coating, anti-bacterial powder coating, anodised.
Energy Efficiency

Thermal Transmission Coefficient (double glazing): from 1.4 (W/m2K)

Thermal Transmission Coefficient (triple glazing): Uw > 1.2 (W/m2K)

Please consult typology, dimensions and glazing

Acoustic Insulation
  • Maximum glazing: 36mm
  • Maximum acoustic insulation: Rw = 40dB
Categories achieved at test centre
  • Air Permeability (EN 12207): Class 3* / Class 4*
  • Water Tightness (EN 12208): Class 7A
  • Wind Resistance (EN 12210): Class C5* / C2*
  • PAS24 Security Test: PASSED *

* See product spec sheet for test configuration

Cor Vision Sliding Door

Create beautiful open spaces with the cor vision sliding door system
Create beautiful open spaces with the cor vision sliding door system
Create beautiful open spaces with the cor vision sliding door system

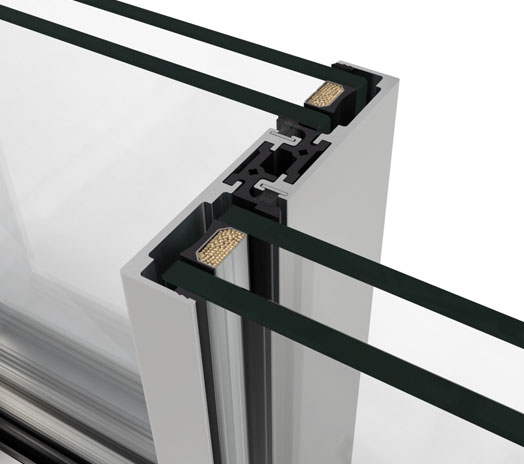

dissected image of product structure
dissected image of product structure
dissected image of product structure
dissected image of product structure
dissected image of product structure

Elegant design that offers the possibility for 90° corner sash configurations without mullion creating clear spaces to be able to better enjoy the outside view.

  • Interlock profile of 20mm
  • Maximum glazing area
  • Possibility of embedding the bottom, top and lateral frames within the wall
  • Possibility of interior and exterior corner sash at 90° without mullion
  • Possibility of pocket system
  • Possibility of 1, 2 or 3 rails
  • PAS 24
Download Product Brochure (PDF)
Glazing
  • Maximum glazing thickness: 30mm
Opening Possibilities
  • Sliding of 1, 2, 3, 4 or 6 sashes
  • Possibility of 1, 2 or 3 rails
  • 1 sash + 1 fixed / 2 sashes + 1 fixed
  • Possibility of interior and exterior corner at 90° without mullion
  • Possibility of galandage in 1, 2, 3 and 4 sashes
Sections
  • Frame: 116mm - 182mm 3 rails
  • Sash: 37mm
Profile Thickness
  • Door: 1.7mm
Polyamide Strip Length
  • From 16mm to 24mm
Maximum Dimensions/sash
  • Width (L): 2500mm
  • Height (H): 3000mm

Glass surface < 14m2

Maximum Sash Weight
  • 320kg

Please consult regarding maximum weight and dimensions for other opening types

Finishes
  • Possibility of dual colour systems, colour powder coating (RAL, mottled, rough), wood effect powder coating, anti-bacterial powder coating, anodised.
Energy Efficiency

Thermal Transmission Coefficient: Uw from 1.3 (W/m2K)

Please consult typology, dimensions and glazing

Acoustic Insulation
  • Maximum acoustic insulation: Rw = 41dB
Categories achieved at test centre
  • Air Permeability (EN 12207): Class 4
  • Water Tightness (EN 12208): Class 7A
  • Wind Resistance (EN 12210): Class C5

Reference test 1.23 x 1.55m. 1 sash + 1 fixed light

Cor Vision Plus Sliding Door

Create beautiful open spaces with our sliding door systems

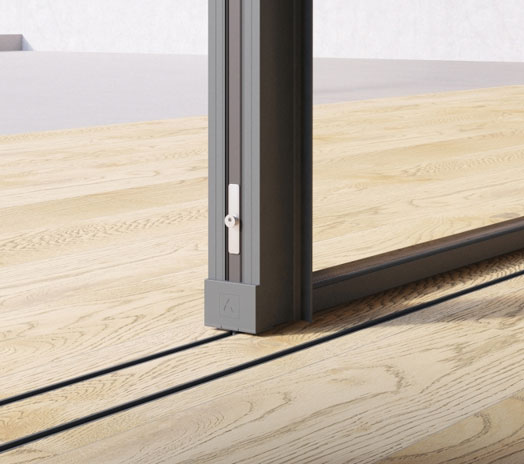

A minimalist sliding system for great aesthetics
dissected image of product structure
dissected image of product structure
example image of the frames locking mechanism

A minimalist sliding system specially suitable for large dimensions with outstanding thermal and acoustic performance. It is possible to cover great openings with a glass surface of 94% with a visible section of just 25mm.

  • Comes with the option of motorised openings for weights up to 700kg and manual opening for up to 400kg. Additionally it allows placement of multipoint locking systems by operating rod with or without key.
  • The rollers are placed in the frame, the sashes come with a stainless steel reinforced rolling area which makes the sliding movement smoother.
  • Possibility of corner sash encounters at 90° without needing a mullion.
  • Motorised version allows to completely hide the sash within the frame in closing position.
Download Product Brochure (PDF)
Glazing
  • Maximum glazing thickness: 56mm
Opening Possibilities
  • Sliding of 2, 4 or 6 sashes
  • Up to 4 rail configurations
  • 1 sash + 1 fixed / 2 sashes + 1 fixed
  • Possibility of corner sash encounters at 90° without mullions
  • Pocket solution possibility of 1, 2, 3 and 4 sashes
Sections
  • Frame: 180mm - 278mm 3 rails
  • Sash: 69mm
Profile Thickness
  • Door: 2.0mm
Polyamide Strip Length
  • From 18mm to 40mm
Maximum Dimensions/sash
  • Width (L): 4000mm
  • Height (H): 4000mm

Glass surface < 14m2

Maximum Weight/sash
  • Manual: 400kg
  • Motorised: 700kg
Finishes
  • Possibility of dual colour systems, colour powder coating (RAL, mottled, rough), wood effect powder coating, anti-bacterial powder coating, anodised.
Energy Efficiency

Thermal Transmission Coefficient: Uw from 0.9 (W/m2K)

Please consult typology, dimensions and glazing

Acoustic Insulation
  • Maximum glazing: 56mm
  • Maximum accoustic insulation: Rw = 43dB
Categories achieved at test centre
  • Air Permeability (EN 12207): Class 4
  • Water Tightness (EN 12208): Class 7A* / 9A*
  • Wind Resistance (EN 12210): Class C3* / C4**

* Reference test balcony 4.00 x 3.00 m / 2 sashes
** Reference test balcony 4.00 x 3.00 m / 1 sash + 1 fixed light
