Aluminium Windows

Our Cortizo range of aluminium window systems maximise energy efficiency, thermal and acoustic insulation and resistance to atmospheric agents.

With a wide range of finishes available, our aluminium range ensures longevity combined with impressive thermal and acoustic insulation and resistance to atmospheric agents.

Casement

Bringing the outside inside
dissected image of product structure
dissected image of product structure
dissected image of product structure
dissected image of product structure

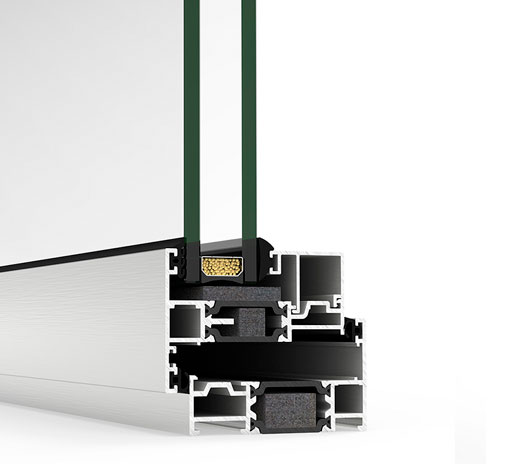

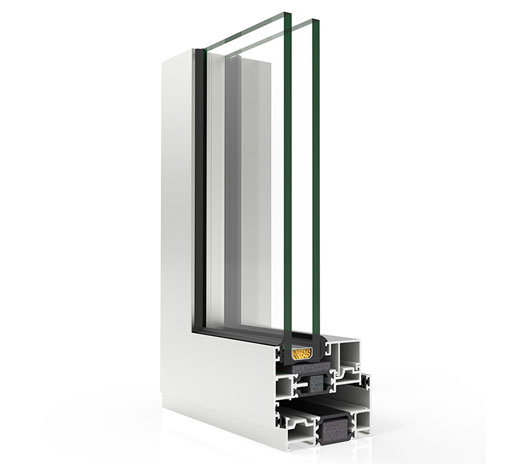

Cortizo Casement is a modern left/top hung thermal and acoustic insulated window with profile sightlines of 70mm to maximise light into the room.

With 1.0 W/m2K energy efficiency; Class 4 permeability; Class E1200 Water tightness; CE2400 Wind resistance and British security certification PAS 24.

  • PAS24 available
  • Concealed hardware
  • Commercial and domestic applications
Download Product Brochure (PDF)
Download Bottom Details (PDF)
Download Spec & Detail Guide (PDF)

Glazing
  • Minimum glazing thickness: 23mm
  • Maximum glazing thickness: 44mm

Opening Possibilities
  • Outward: side or top hung
Sightlines
  • Frame: 70mm
  • Sash: 70mm
Profile Thickness
  • Window: 1.6mm
Polyamide Strip Length
  • 32mm
Maximum Sash Dimensions & Weight
  • Slim Sash (side hung): 700mm (W) x 1300mm (H). Max Weight: 35kg.
  • Slim Sash (top hung): 1200mm (W) x 1300mm (H). Max Weight: 50kg.
  • Heavy Duty Sash (side hung): 750mm (W) x 1750mm (H). Max Weight: 42kg.
  • Heavy Duty Sash (top hung): 1800mm (W) x 1800mm (H). Max Weight: 100kg.
Finishes
  • Possibility of dual colour systems, colour powder coating (RAL, mottled, rough), wood effect powder coating, anti-bacterial powder coating, anodised.
Energy Efficiency

Thermal Transmission Coefficient (double glazing): Uw from 1.4 (W/m2K)

Thermal Transmission Coefficient (triple glazing): Uw from 1.0 (W/m2K)

Please consult typology, dimensions and glazing

Acoustic Insulation
  • Maximum Acoustic Insultation: Rw up to 45dB
Categories achieved at test centre
  • Air Permeability (EN 12207): Class 4
  • Water Tightness (EN 12208): Class E1200
  • Wind Resistance (EN 12210): Class CE2400
  • PAS24 Security Test: PASSED *

* See product spec sheet for test configuration

Cor 70 Hidden Sash

Bringing the outside inside
Bringing the outside inside
dissected image of product structure
dissected image of product structure
dissected image of product structure

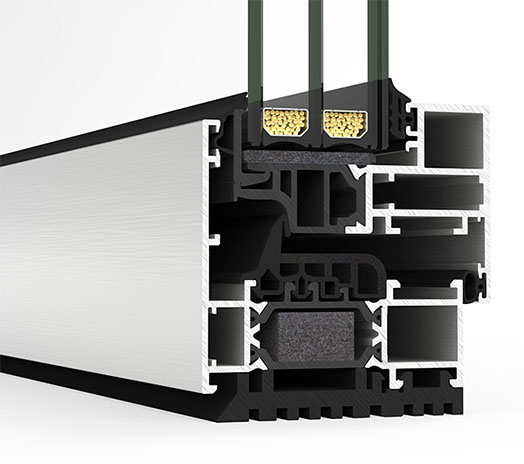

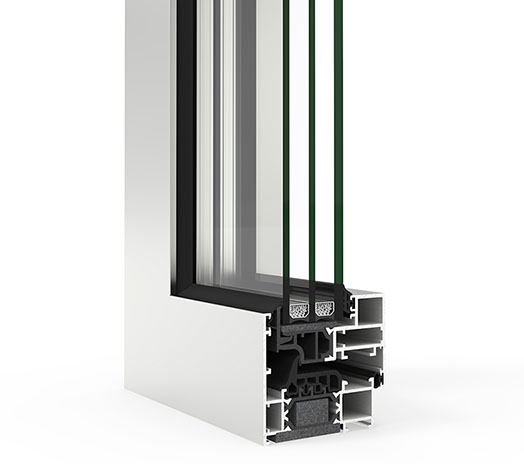

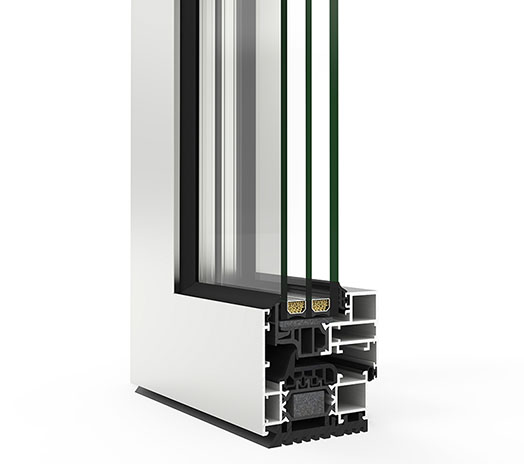

The Cortizo Cor 70 Hidden Sash System has a sightline of only 66 mm and allows the incorporation of the Arch Invisible handle, concealed hinges and a drainage solution. Any element that breaks the visual harmony of the ensemble is discarded.

  • PAS24 available
  • Concealed hinges
  • Concealed drainage
  • Concealed handle
Download Product Brochure (PDF)
Download Bottom Details (PDF)
Download Spec & Detail Guide (PDF)

Glazing
  • Minimum glazing thickness: 26mm
  • Maximum glazing thickness: 40mm
Opening Possibilities
  • Inward: side hung, tilt & turn, tilt only
Sightlines
  • Frame: 70mm
  • Sash: 70mm
Profile Thickness
  • Window: 1.9mm
Polyamide Strip Length
  • 35mm
Maximum Sash Dimensions
  • Standard Solution: 1300mm (W) x 2400mm (H).
  • HD Hardware (side hung): 1200mm (W) x 3500mm (H).
Maximum Sash Weight
  • 160kg
Finishes
  • Possibility of dual colour systems, colour powder coating (RAL, mottled, rough), wood effect powder coating, anti-bacterial powder coating, anodised.
Energy Efficiency

Thermal Transmission Coefficient (double glazing): Uw from 1.1 (W/m2K)

Thermal Transmission Coefficient (triple glazing): Uw from 0.81 (W/m2K)

Please consult typology, dimensions and glazing

Acoustic Insulation
  • Maximum Acoustic Insultation: Rw up to 46dB
Categories achieved at test centre
  • Air Permeability (EN 12207): Class 4
  • Water Tightness (EN 12208): Class E1650
  • Wind Resistance (EN 12210): Class C5
  • PAS24 Security Test: PASSED *

* See product spec sheet for test configuration

Arch Invisible Handle

Handle integrated within the sash is imperceptible from the front view
Alternate view of handle integrated within the sash is imperceptible from the front view

The first invisible handle solution on the market for both the COR 70 Hidden Sash & Cor 80 Hidden Sash Systems.

  • The first invisible opening system on the market
  • Handle is integrated within the sash. The handle is hidden from the front view.
  • Concealed hinges that consolidate the aesthetic purity of the system.
Download Product Brochure (PDF)
Availability
  • COR 70 HIDDEN SASH
  • COR 80 HIDDEN SASH
Dimensions
  • Width: 27.5mm
  • Height: 234mm
