Aluminium Curtain Walling

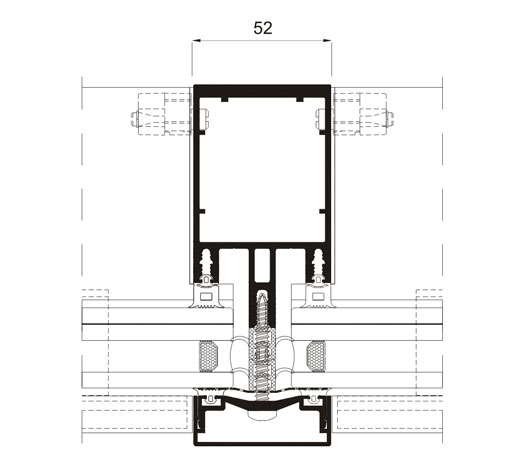

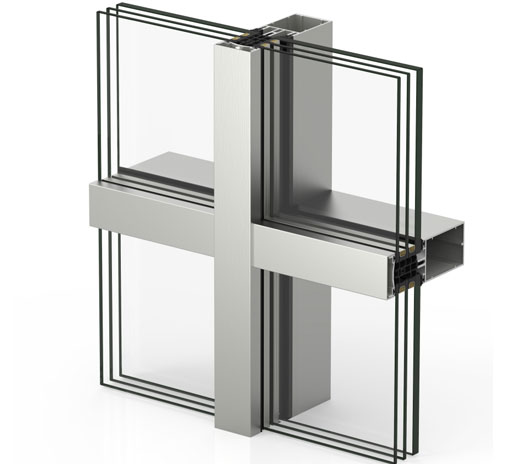

Cortizo light facade system composed of 52mm mullions and transoms that form the support structure. The glass is fixed at its four sides by a continuous pressure profile that is externally screwed to the screw ports incorporated in the mullions and transoms, concealing the entire fixing system under an embellishing profile or cover with an interlock profile of 52mm.

  • Great variety of mullions (from 16 to 230 mm) and transoms (from 22,5 to 205,5) that solve the different aesthetic and constructive needs of any architectonic projects
  • Internal seen section: 52 mm
  • Extensive profile range, their mechanical unions allows for all types of facades to be built (vertically, inclined, 90° corners, corners, polygonal) as well as solving large and heavy glazing modulations
  • Water tightness elements: drainage pipettes, tear strip gaskets and vulcanized angles

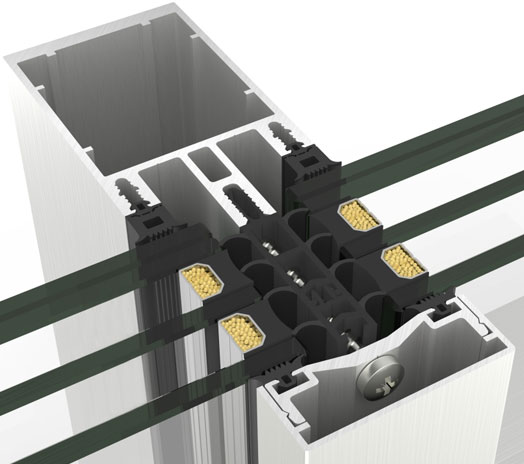

  • In order to fix the glass to the supporting profiles, a pressed profile is needed, this profile is screwed to the mullions and transoms, and covered with a embellisher profile (cover profile)
  • Excellent thermal and acoustic properties

Download Product Spec (PDF)

Glazing
  • Maximum glazing thickness: 64mm
  • Minimum glazing thickness: 4mm

Opening Possibilities
  • Hidden turn & tilt
  • Hidden side hung
  • Hidden top hung projecting
Sections
  • Mullion: 52mm
  • Transom: 52mm
Profile Thickness
  • Mullion: 2.1 and 3mm
  • Mullion: 2.1mm
Polyamide Strip Length
  • 6, 12 & 30mm stackable profiles
Min/Max Opening Dimensions
  • Hidden Top Hung: Width (L) = 500mm / 2500mm. Height (H) = 650mm / 2500mm
  • Hidden Parallel Projecting: Width (L) = 530mm / 2000mm. Height (H) = 530mm / 3000mm
  • Hidden Side Hung / Turn & Tilt: Width (L) = 500mm / 1400mm. Height (H) = 600mm / 1900mm
Maximum Weight / Sash
  • Hidden Top Hung: 180kg
  • Hidden Parallel Projecting: 200kg.
  • Hidden Side Hung / Turn & Tilt: 100kg.
Maximum weight of fixed lights
  • 750kg

Consult maximum weight and dimensions according to typologies

Covers
  • Elliptical: 85mm
  • H Shape: 34mm
  • Rectangular: 14, 19, 100 & 145mm
  • Pyramid: 155mm
Finishes
  • Possibility of powder coating and anodised finish.
Energy Efficiency

Thermal Transmission Coefficient: Uw > 0.6 (W/m2K)

Please consult dimensions and glazing

Certification
  • CWCT British Standard
Categories achieved at test centre
  • Air Permeability (EN 12152): Class AE
  • Water Tightness (EN 13114): Class RE1500
  • Wind Resistance (EN 13116): PASSED *

* See product spec sheet for test configuration
